DWY

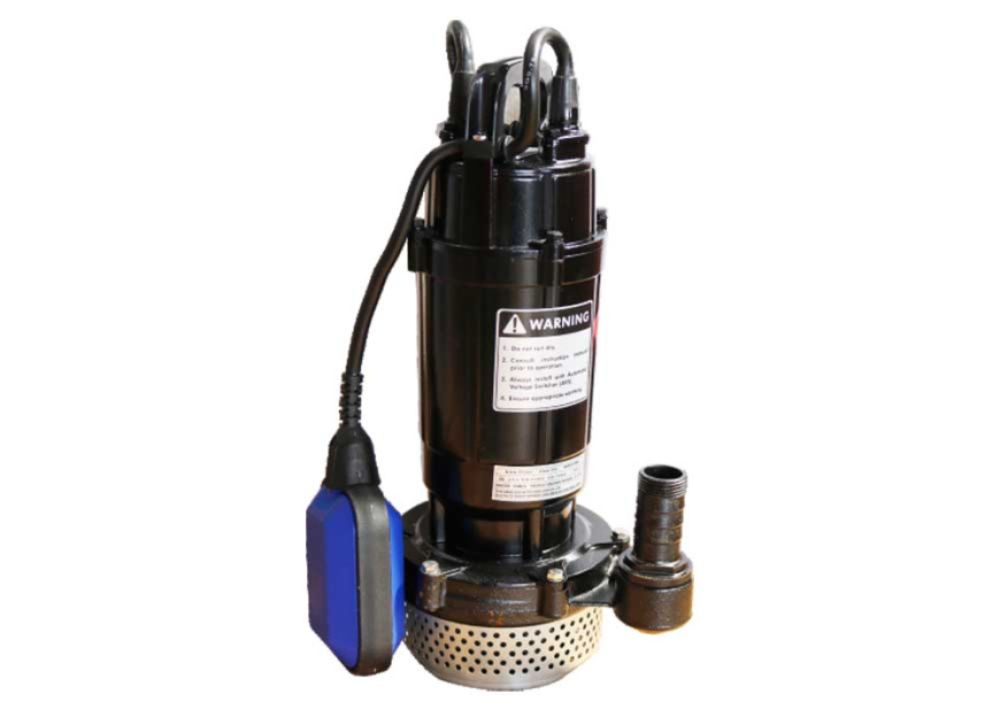

The Dayliff DWY range of portable submersible pumps is specifically designed for well pumping and drainage applications involving clean water with minimal impurities. These pumps feature a closed impeller design, and their major components are made from cast aluminum. Applications where the Dayliff DWY pumps can be used:

1. Well Water Pumping: The DWY pumps are ideal for extracting water from wells for domestic water supply. Whether it's a shallow well or a deep borehole, these pumps can effectively pump clean water and deliver it to the desired location, providing a reliable water source for household use.

2. Small-scale Water Supply: These portable submersible pumps can be used for small-scale water supply applications, such as supplying water to remote cabins, campsites, or rural areas where access to a municipal water supply is limited. The DWY pumps can provide a convenient and independent water source for basic household needs.

3. Water Transfer: These pumps can be employed for transferring clean water from one location to another. Whether it's filling water tanks, emptying swimming pools, or transferring water between storage containers, the DWY pumps can facilitate efficient and convenient water transfer operations.

4. Garden and Irrigation: The DWY pumps can be utilized for garden watering and irrigation purposes. They can supply water to sprinkler systems, drip irrigation setups, or hose outlets, ensuring proper hydration for plants, gardens, and lawns.

5. Drainage: In situations where there is a need to remove clean water or accumulated rainwater, the DWY pumps can be used for drainage purposes. They can efficiently drain flooded basements, construction sites, or other areas where water needs to be removed.

MOTOR
Pumps are supplied with two pole single phase squirrel cage motors with integral thermal overload protection and can be directly connected to the mains through a 10A fuse or MCB (13A for 1.5kW motor)
Enclosure Class:IP68
Insulation Class:F
Voltage:1x240
Speed:2850rpm

OPERATING CONDITIONS
Pumped Liquid: Thin, clean, chemically non-aggressive liquids
Max. Fluid Temperature: +40°C
Max. Ambient Temperature: +40°C
Min Immersion Depth:10m
Max. Particle Size: <1.1kW, 3.3mm, >1.5kW, 5.5mm

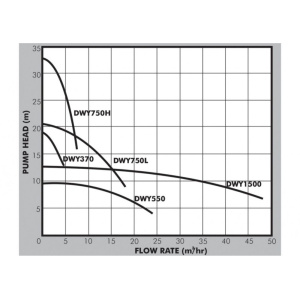

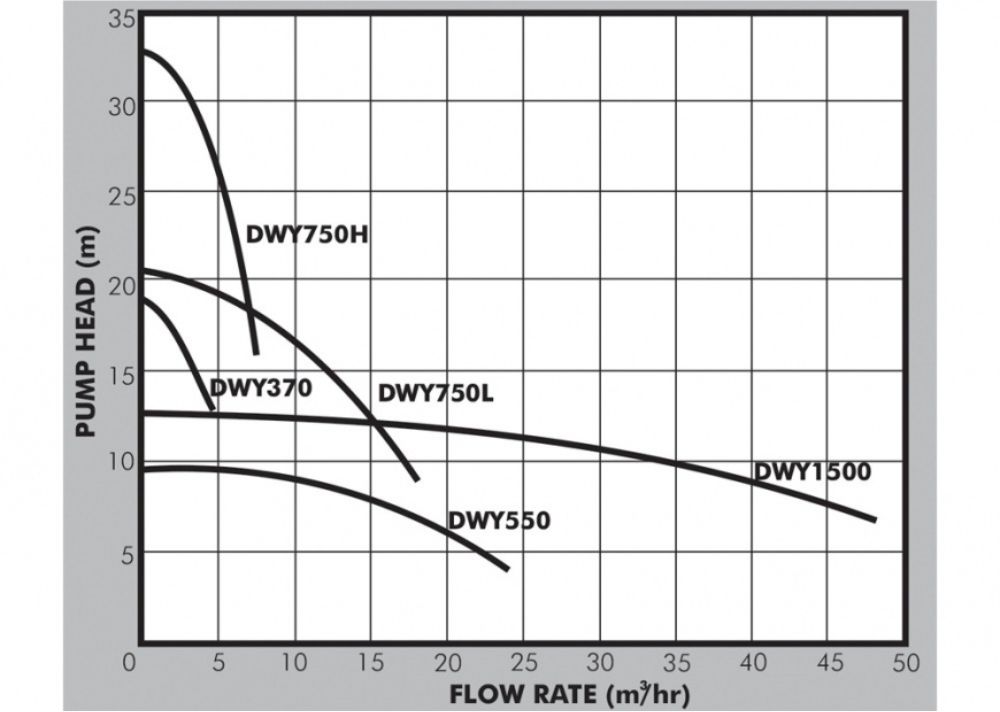

PUMP DATA
