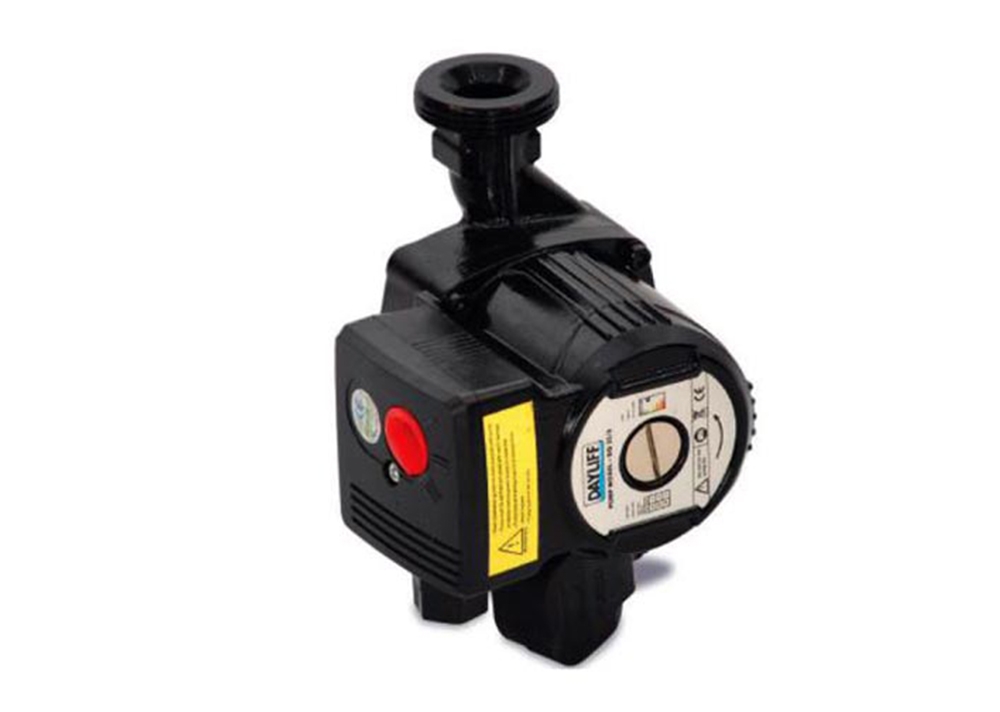

DQ 15/25/32

The DAYLIFF DQ circulator pumps are versatile pumps designed for hot water circulation in various applications.  DAYLIFF DQ circulator pumps can be used in :

1. Heating Systems: The DQ circulator pumps are commonly used in heating systems, including central heating systems in residential, commercial, and industrial buildings. These pumps ensure the efficient circulation of hot water throughout the system, helping to maintain a consistent and comfortable indoor temperature.

2. Hot Water Distribution: The DQ circulator pumps are suitable for hot water distribution systems in buildings and facilities. They can be used to circulate hot water from a central heating source, such as a boiler or water heater, to various endpoints, such as faucets, showers, and appliances, ensuring quick and consistent hot water availability.

3. Cooling and Air Conditioning Systems: These pumps are also utilized in cooling and air conditioning applications. They circulate chilled water through the system, facilitating the cooling process and maintaining the desired indoor temperature. The DQ circulator pumps contribute to efficient cooling and air conditioning performance.

4. Pressure Boosting: The DQ circulator pumps can be employed for pressure boosting in domestic dwellings. They help increase water pressure in the plumbing system, ensuring adequate flow and pressure at various outlets, such as showers, faucets, and appliances. This is particularly useful in situations where the existing water pressure is insufficient.

5. Solar Hot Water Systems: These pumps can be used for circulation in solar hot water systems. They facilitate the movement of heated water from solar collectors to storage tanks, ensuring efficient heat transfer and utilization of solar energy for hot water production.

It's important to consider the specific requirements of each application, including flow rate, pressure, system compatibility, and the specific model of the DAYLIFF DQ circulator pump to ensure optimal performance and compatibility. Consulting the manufacturer's guidelines and recommendations is crucial for proper pump selection, installation, and maintenance in each application.

MOTOR
The integral 2-pole asynchronous squirrel-cage motor is designed to operate at three speeds (except DQ15F). All motors include an inbuilt capacitor and overload protection and can be connected directly to mains supply through a 5A fuse or MCB.

Enclosure Class: IP54
Insulation Class: F
Voltage:1x240V
Speed:2900rpm

OPERATING CONDITIONS
Pumped Liquid: Thin, clean, chemically non-aggressive liquids without solids or fibres.
Max Fluid Temperature:-10°C -110°C.
Max. Ambient Temperature: 10°C - 50°C
Max. Operating Pressure: 6 bar
Installation: Pumps must be installed with rotor shaft horizontal and vertical water flow.
Note: The liquid temperature should be higher than the ambient temperature.

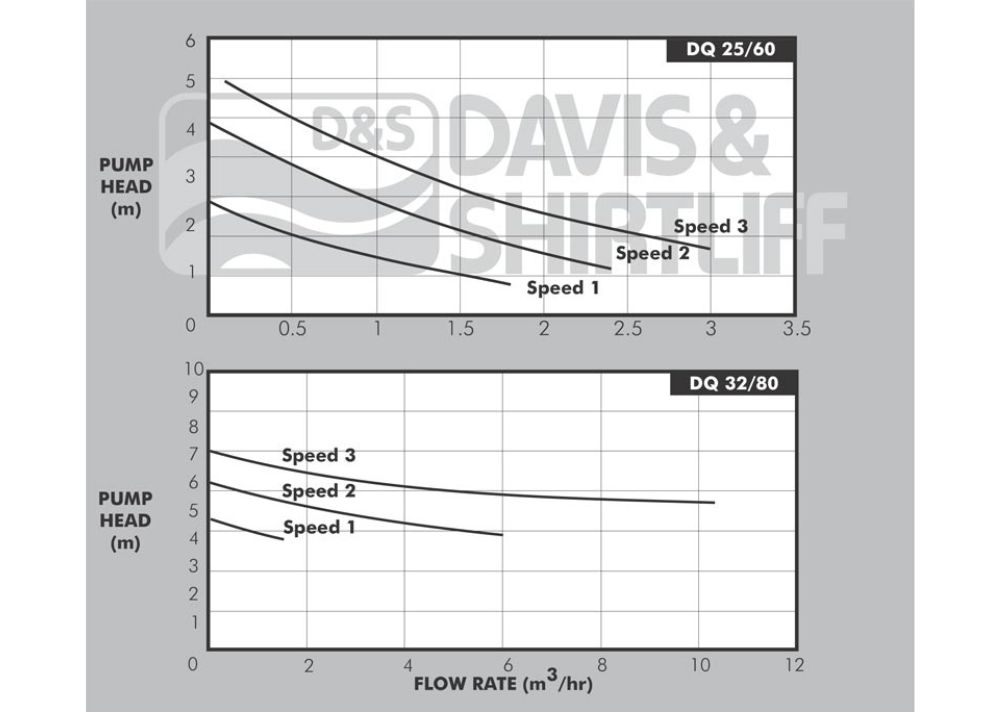

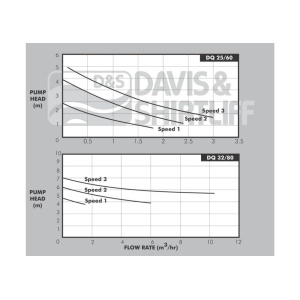

PUMP DATA
