DQ 40/50/65

The DAYLIFF DQ circulator pumps, with their design for water circulation in heating, hot water, cooling, or air conditioning systems, are well-suited for applications that require high water volumes at low pressures. Some applications where the DAYLIFF DQ circulator pumps can be used:

1. HVAC Systems: The DQ circulator pumps are commonly employed in heating, ventilation, and air conditioning (HVAC) systems. They facilitate the circulation of water in these systems, ensuring efficient heat transfer, cooling, or heating as required. The pumps can handle high water volumes at low pressures, making them suitable for various HVAC applications.

2. Commercial Buildings: These circulator pumps are commonly used in large commercial buildings, such as office complexes, shopping malls, or hotels. They help maintain proper temperature control by circulating water for heating or cooling purposes throughout the building, enabling a comfortable indoor environment.

3. Industrial Processes: The DQ circulator pumps can be utilized in various industrial processes that require water circulation at low pressures. These processes can include cooling systems for machinery or equipment, temperature control in manufacturing processes, or water circulation in industrial heating systems.

4. Water Distribution Systems: These pumps can be employed in water distribution systems where high water volumes need to be circulated at low pressures. Examples include municipal water supply systems or large-scale residential complexes where the pumps ensure the efficient flow of water for distribution to different areas or buildings.

5. Aquaculture and Fish Farming: The DAYLIFF DQ circulator pumps find applications in aquaculture and fish farming. They can be used to circulate water in fish tanks or ponds, providing oxygenation, temperature control, and maintaining water quality. The pumps' ability to handle high water volumes is advantageous in such setups.

It's important to consider factors such as flow rates, pressure requirements, and the specific model of the DAYLIFF DQ circulator pump to ensure compatibility with the application. Following the manufacturer's guidelines and recommendations for proper installation, maintenance, and system integration is crucial for optimal performance and longevity.

MOTOR
The integral 2-pole asynchronous squirrel-cage motor is designed for continuous duty operating at one speed. It can be connected to mains supply though an MCB and suitably sized DOL starter.

Voltage:3x415V
Enclosure Class: IP44
Insulation Class: B

OPERATING CONDITIONS
Pumped Liquid: Thin, clean, chemically non-aggressive liquids without solid particles or fibres
Liquid Temperature: 5°C to +110°C
Max. Ambient Temperature: -10°C - +50°C
Max. Operating Pressure: 6bar
Certification: CE, ISO14001, OHSAS18001, ISO9001

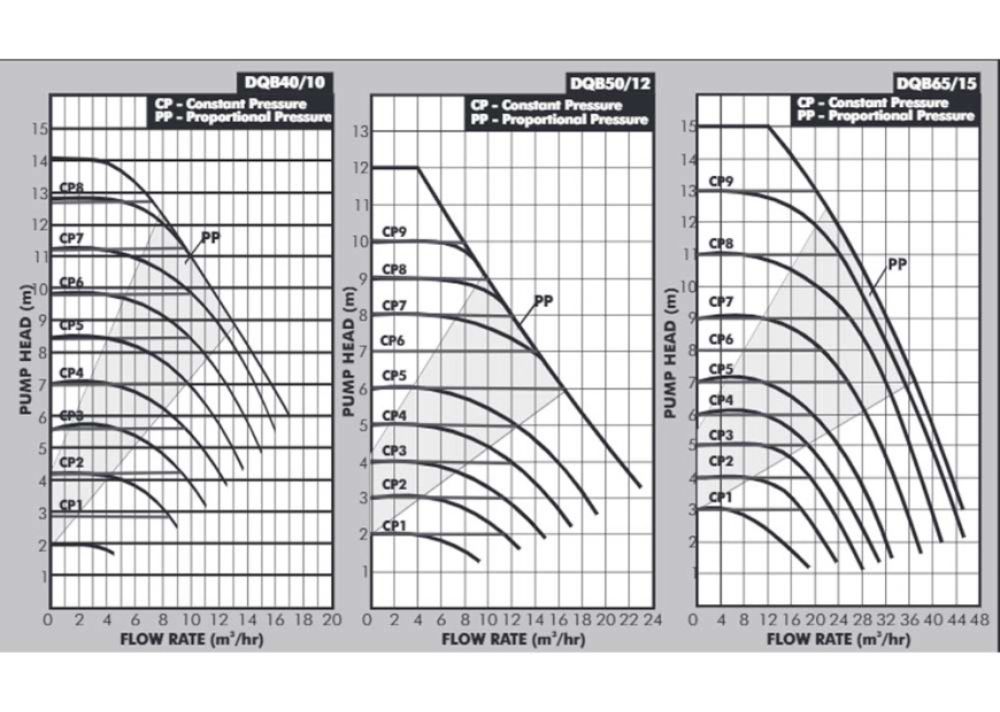

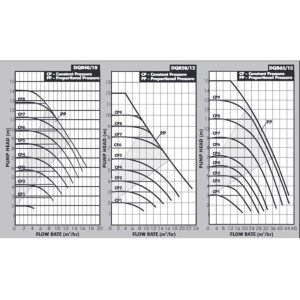

PUMP DATA
