DG PED

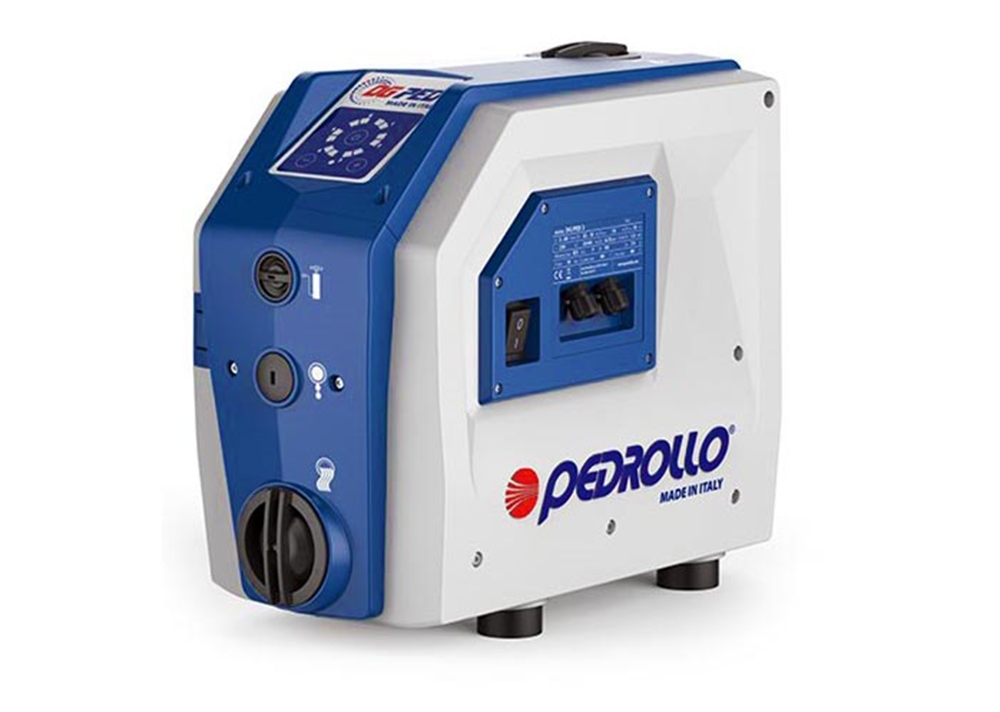

The Pedrollo DG PED is an advanced integrated automatic water pressurizing system specifically designed for domestic and small-scale water supply applications. It combines a high-efficiency self-priming pump with inverter control and features an inbuilt pressure vessel and electronic control system. The system not only regulates performance but also offers various protective functions. Here are some applications where the Pedrollo DG PED system can be used:

1. Residential Water Supply: The DG PED system is ideal for residential buildings where consistent water pressure and supply are required. It can ensure a steady water flow for showers, faucets, toilets, and other domestic water needs, even in situations where the mains water pressure is insufficient.

2. Apartments and Condominiums: The system is suitable for apartment complexes and condominiums that require a reliable and efficient water pressurizing solution. It can deliver consistent water pressure to multiple units simultaneously, ensuring satisfactory water supply throughout the building.

3. Small Commercial Establishments: The DG PED system can be utilized in small-scale commercial setups such as offices, shops, or cafes that require a consistent water supply for various operations. It ensures adequate water pressure for tasks like cleaning, dishwashing, restroom facilities, and other commercial water requirements.

4. Irrigation Systems: The system can be incorporated into small-scale irrigation systems for gardens, lawns, or small agricultural fields. It provides controlled water pressure for efficient distribution through sprinklers, drip irrigation systems, or hoses, ensuring optimal watering and plant growth.

5. Rainwater Harvesting Systems: When combined with a rainwater harvesting setup, the DG PED system can enhance the utilization of collected rainwater. It can provide consistent water pressure for non-potable uses such as toilet flushing, washing machines, outdoor taps, and other applications within the building.

6. Booster Systems: The DG PED system is suitable for boosting water pressure in situations where the existing pressure is inadequate. It can be used to improve pressure for showers, baths, or other areas where higher pressure is desired, providing enhanced comfort and convenience.

7. Water Transfer and Distribution: The system can be employed for water transfer and distribution tasks in domestic and small-scale applications. It can effectively move water from one location to another, ensuring efficient water distribution and availability.

8. Automatic Water Supply Systems: The DG PED system is well-suited for automatic water supply setups, where it can regulate and maintain a constant pressure in the water supply network. It ensures reliable performance, smooth operation, and protection against potential issues like dry running, overvoltage, or overload.

These are some of the common applications where the Pedrollo DG PED integrated automatic water pressurizing system can be utilized. Its advanced features, inverter control, and integrated pressure vessel make it a convenient and efficient solution for domestic and small-scale water supply needs.

MOTOR
Pumps are fitted with close coupled TEFC brushless induction motors designed for continuous duty. Motors should be fitted with a DOL starter and an appropriately sized MCB for control and protection.

Enclosure Class: IP55
Insulation Class: H
Speed: 2900rpm
Voltage: 3x415V
Power: 2.2kW
Max. Current: 4.8A

OPERATING CONDITIONS
Pumped liquid: Thin, clean, chemically non-aggressive liquids without abrasive particles or fibres.
Max. Fluid Temperature: +90°C
Max. Ambient Temperature: +40°C
Max. Suction lift: 8 m (at sea level)
