F Series

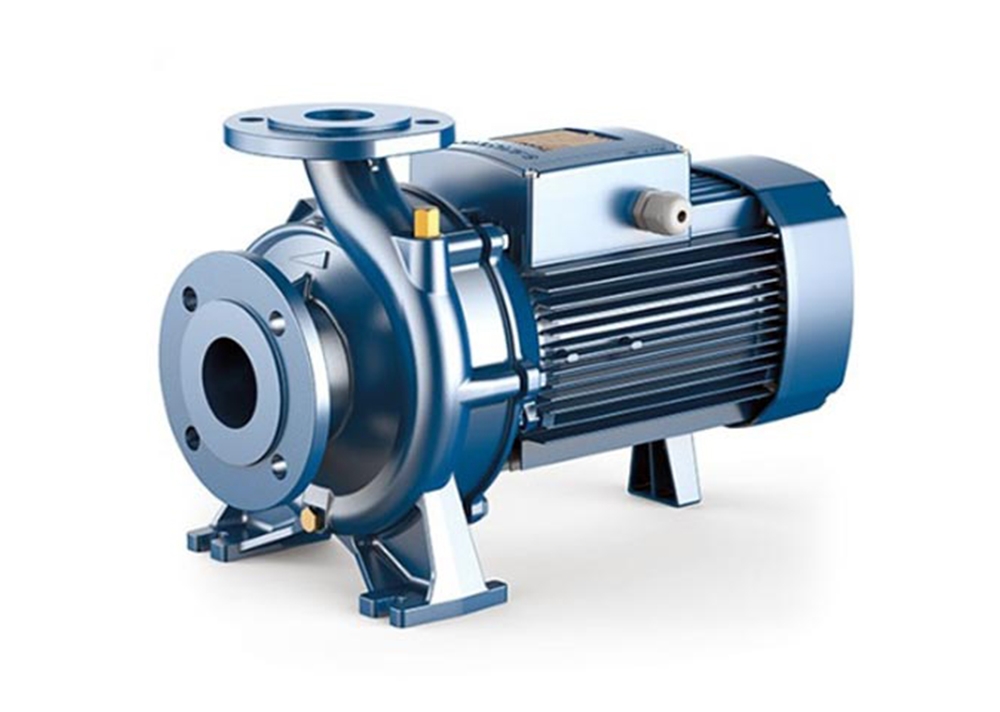

The PEDROLLO F Series range consists of high-flow centrifugal pumps with close-coupled motors and flanged inlet and outlet connections. The hydraulic ends of these pumps are designed to meet the specifications outlined in the DIN 24255 standards, ensuring interchangeability with other similar types of pumps. The close-coupled design offers advantages such as cost-effectiveness, reliability, and compactness. These pumps are particularly suitable for higher volume industrial applications and are built with heavy-duty construction to provide long life and continuous operation. The back pull-out design allows for dismantling without the need to disconnect the pump casing from the pipework. The pump construction includes a cast iron body and back plate, a brass alloy impeller, and a ceramic/graphite mechanical seal. Here are some applications where the PEDROLLO F Series pumps can be used:

1. Industrial Water Transfer: The F Series pumps are designed for high-flow industrial water transfer applications. They can handle large volumes of water, making them suitable for tasks such as water circulation in industrial processes, cooling systems, or water supply for manufacturing equipment.

2. Water Supply in Commercial Buildings: These pumps can be utilized in commercial buildings, such as office complexes, shopping malls, or hotels, where a high volume of water is required. They can provide reliable water supply for restrooms, sinks, firefighting systems, or other water-demanding operations.

3. Municipal Water Distribution: The F Series pumps can be employed in municipal water distribution systems, where high flow rates are necessary to supply water to communities or neighborhoods. They can ensure efficient and reliable water distribution for residential and commercial areas.

4. Water Treatment Plants: These pumps find applications in water treatment plants, including filtration, disinfection, or sedimentation systems. They can provide the necessary flow rates to move water through different treatment processes, ensuring clean and safe water supply.

5. Irrigation Systems: The F Series pumps are suitable for high-volume irrigation systems, such as agricultural fields, golf courses, or parks. They can effectively distribute water for irrigation, ensuring proper hydration and growth of crops, plants, or turf.

6. Fire Protection Systems: These pumps can be incorporated into fire protection systems that require high-flow water supply for firefighting operations. They can provide the necessary flow rates to drive water through sprinklers, hydrants, or fire hoses, helping to extinguish fires effectively.

7. Flood Control: The F Series pumps can be utilized in flood control systems, particularly for managing large volumes of water during flooding events. They can assist in water transfer, drainage, or dewatering operations, helping to mitigate flood damage.

8. Water Features and Fountains: These pumps are suitable for creating high-flow water features and fountain displays in architectural installations, parks, or public spaces. They can provide the necessary flow rates to achieve visually stunning water effects.

The PEDROLLO F Series pumps, with their high flow capabilities, close-coupled design, and robust construction, are well-suited for industrial applications requiring substantial water volumes. Their interchangeability with DIN 24255 standards and back pull-out design enhance their versatility and ease of maintenance.

MOTOR
The close coupled fan cooled TEFC induction motors are non overloading and designed for continuous duty. Single phase pumps may be connected directly to mains power through 10Amps MCB while a remote starter with thermal overload is necessary for three phase pumps.

Enclosure Class: IP44
Insulation Class: F
Speed: 2900rpm

OPERATING CONDITIONS
Pumped liquid: Thin, clean, chemically non-aggressive liquids without solids or fibres.
Max. Fluid Temperature: +90º C
Max. Ambient Temperature: +40º C
Max. Suction Lift: 7m (at sea level)

Pump Data
