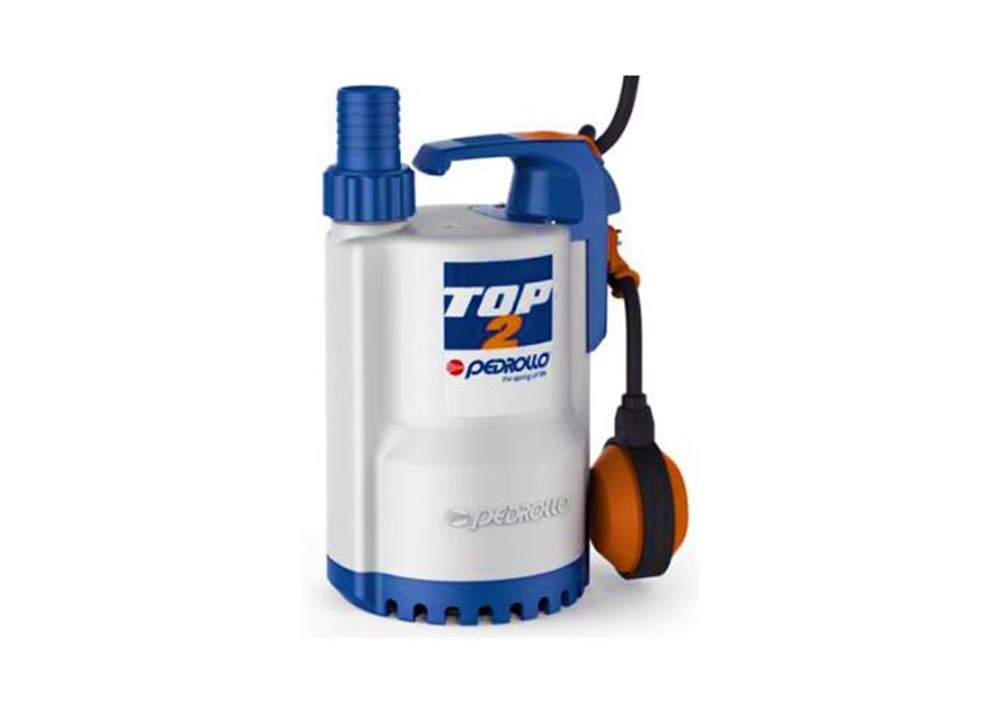

TOP

The PEDROLLO TOP range consists of centrifugal submersible pumps designed for specific applications. The TOP models feature a centrifugal impeller and are suitable for emptying water containing light silt loads, while the TOP VORTEX models are equipped with a vortex impeller designed for handling dirty waters with higher levels of suspended solids. These pumps incorporate several innovative features, including double mechanical seals with an intermediate oil chamber for total motor protection and a simple design that facilitates maintenance. The pump construction includes a fibreglass reinforced technoplastic external casing, suction base, and NORYL impeller. An external float with a built-in switch is provided to automatically control the pump's starting and stopping. Here are some applications where the PEDROLLO TOP range can be used:

1. Basement and Cellar Drainage: The TOP pumps are suitable for draining water from basements or cellars that may contain light silt or debris. They can effectively remove water and prevent flooding in residential or commercial properties.

2. Water Transfer and Drainage: These pumps can be used for general water transfer and drainage tasks, such as emptying swimming pools, ponds, tanks, or construction sites. They can handle water with light silt loads and suspended solids.

3. Flooded Areas: The TOP pumps are helpful in situations where areas are affected by floods or heavy rainfall. They can efficiently remove water from flooded basements, yards, or low-lying areas, facilitating cleanup and recovery.

4. Dirty Water Handling: The TOP VORTEX models, with their vortex impeller, are specifically designed for handling dirty water with higher levels of suspended solids. They are suitable for applications involving wastewater, drainage from septic tanks, or water containing debris and solids.

5. Industrial Applications: These pumps find applications in various industrial settings, such as factories, workshops, or construction sites. They can handle water with light silt loads or suspended solids, making them useful for processes that involve water transfer, drainage, or effluent handling.

6. Water Features and Ponds: The TOP pumps can be utilized in water features, ponds, or decorative fountains. They can effectively circulate or drain water, ensuring proper water movement and maintenance of the feature's aesthetic appeal.

7. Stormwater Management: These pumps can be incorporated into stormwater management systems to handle the drainage of rainwater from roads, parking lots, or rooftops. They assist in preventing water accumulation and mitigating the risk of flooding.

8. Municipal Applications: The TOP range can be employed in various municipal applications, including wastewater drainage, sewage lift stations, or stormwater collection. They are designed to handle water with light silt loads or higher levels of suspended solids.

The PEDROLLO TOP range of centrifugal submersible pumps, with their specific impeller designs and robust construction, are designed for various water transfer, drainage, and dirty water handling applications. Their innovative features and ease of maintenance make them reliable options for residential, commercial, and industrial use.

MOTOR
Pumps are provided with built-in liquid cooled non-overloading induction motors designed for continuous operation. A thermal cut-out is provided in the motor windings to protect against pump overload and the pump can be connected directly to the mains power supply through a 10amp fuse or MCB.

Enclosure Class: IP68
Insulation Class: F
Voltage: 1x 240V
Speed: 2900rpm

OPERATING CONDITIONS
Pumped liquid: Thin, clean, chemically non-aggressive, non-abrasive liquids containing small impurities. For maximum particle size see Pump Data.
Max. Fluid Temperature: +40°C
Max. Operating Depth: TOP 2,3 & Vortex - 3m; TOP5 - 5m
