Top Multi

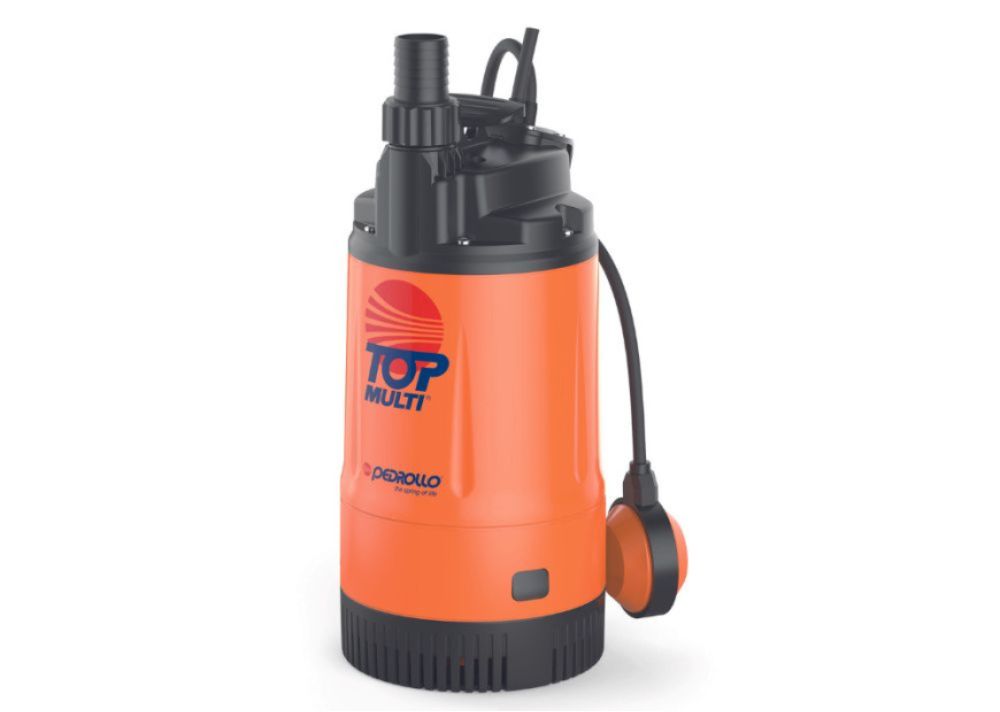

The Pedrollo TOP MULTI pumps are centrifugal multistage submersible pumps designed specifically for pumping from wells and water boosting from tanks. These pumps feature closed impellers and are suitable for applications that require lifting water from wells or boosting water pressure from storage tanks. The MULTI models are designed with excellent motor cooling performance, thanks to the jacketed motor design, which allows the pump to operate continuously, even when partially submerged. Other innovative features include double mechanical seals with an intermediate oil chamber for total motor sealing, ensuring reliable performance. The pump construction includes a fiberglass-reinforced technoplastic body and suction filter, along with Noryl impellers and diffusers. Here are some applications where the Pedrollo TOP MULTI pumps can be used:

1. Well Water Pumping: The TOP MULTI pumps are specifically designed for lifting water from wells. They can efficiently extract water from deep or shallow wells, providing a reliable water supply for residential, commercial, or agricultural needs.

2. Water Boosting: These pumps are suitable for boosting water pressure from storage tanks. They can enhance water pressure for domestic water supply, irrigation systems, or other applications where increased pressure is required.

3. Residential Water Supply: The TOP MULTI pumps can be used in residential settings to provide a consistent and reliable water supply. They can ensure adequate water pressure for showers, faucets, toilets, and other household water outlets.

4. Irrigation Systems: These pumps can be employed in irrigation systems for gardens, lawns, or agricultural fields. They can provide the necessary pressure and flow to distribute water through sprinklers, drip irrigation systems, or hoses, ensuring efficient and effective irrigation.

5. Water Transfer: The TOP MULTI pumps are suitable for transferring water from one location to another. They can be used to fill or empty water storage tanks, transfer water between containers, or move water for various applications, such as construction sites or temporary water supply needs.

6. Commercial Applications: These pumps find applications in commercial settings, such as hotels, resorts, or small businesses, where water boosting or transfer is required. They can provide reliable water pressure and flow for commercial operations, including restrooms, kitchens, or laundry facilities.

7. Rainwater Harvesting Systems: The TOP MULTI pumps can be integrated into rainwater harvesting systems to extract water from storage tanks for various uses. They can ensure efficient distribution of harvested rainwater for irrigation, toilet flushing, or other non-potable water needs.

8. Agricultural Water Supply: These pumps can be utilized in agricultural settings to provide water supply for livestock, crop irrigation, or farm operations. They can handle lifting water from wells or boosting water pressure for efficient water distribution.

The Pedrollo TOP MULTI pumps, with their closed impellers, excellent motor cooling, and durable construction, are designed for reliable and efficient water pumping and boosting applications. Their versatility and ease of maintenance make them suitable for residential, commercial, and agricultural use.

MOTOR
Pumps are provided with built-in non-overloading induction motors designed for continuous operation. A thermal cut-out is provided in the motor windings to protect against pump overload and the pump can be connected directly to the mains power supply through a 10amps fuse or MCB.

Enclosure Class:IPX8
Insulation Class: F
Voltage: 1x240V
Speed: 2900rpm

OPERATING CONDITIONS
Pumped Liquid: Thin, clean, chemically non-aggressive, non-abrasive liquids containing small impurities up to a max size of 1.3mm
Max. Fluid Temperature: +40°C
Max. Immersion Depth: Top Multi 1: 3m, Top Multi 2/4 Tech/EVO: 10m

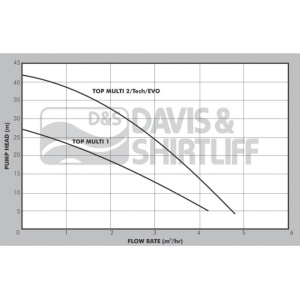

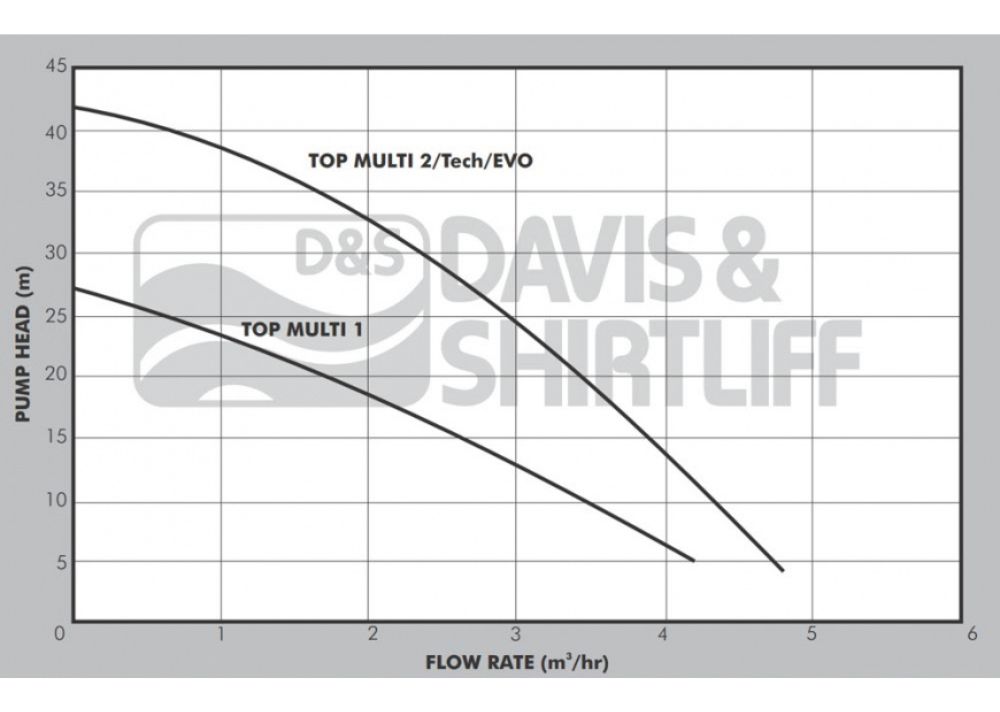

PUMP DATA
