DSP 8



Applications

The DAYLIFF DSP range of submersible multistage centrifugal pumps is specifically designed for domestic and small-scale water supply from wells and boreholes. Here are some applications where these pumps can be used:

1. Residential Water Supply: The DSP pumps are well-suited for providing water supply to residential properties. They can be installed in wells or boreholes to extract water and deliver it to households, ensuring a reliable and consistent source of water for drinking, cooking, bathing, and other domestic needs.

2. Small-Scale Agriculture: These pumps can be used for small-scale agricultural applications, such as irrigating small fields or gardens. They can provide the necessary water flow to efficiently water crops, promoting healthy plant growth and maximizing yields.

3. Livestock Watering: Farmers and ranchers can utilize the DSP pumps to provide water for livestock watering. Whether it's for cattle, poultry, or other animals, these pumps can ensure a reliable water source from wells or boreholes, supporting proper hydration and animal well-being.

4. Small-Scale Commercial Applications: The DSP pumps can be employed for small-scale commercial purposes, including small businesses or community facilities that require a consistent water supply. They can provide water for cleaning, equipment maintenance, and other water-dependent operations.

5. Backup Water Supply: In areas where the main water supply is unreliable or during emergencies, the DSP pumps can serve as a backup water supply. By utilizing wells or boreholes, these pumps can provide an alternative source of water for essential needs, ensuring continuity in water availability even during disruptions.

PUMP DATA

Model Voltage (V) Power Current (A) Istart/I DN ('') Dimensions (mm) Weight (kg)
kW HP A C D
DSP 8-08 1x240 1.5 2 10.4 3.7 2 418 98  858 27
3x415 4 3.5 823 24
DSP 8-13 1x240 2.2 3 15 3.1 573 1068 34
3x415 5.6 3.9 1013 29
DSP 8-17 3x415 3 4 7.4 5.8 697 1213 37
DSP 8-23 3x415 4 5.5 9.8 5 959 1528 47
DSP 8-32 3x415 5.5 7.5 13.7 4.7 1276 1921 57

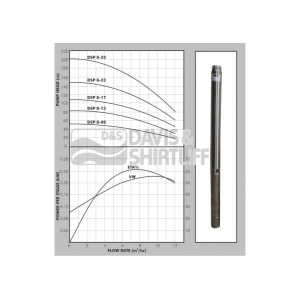

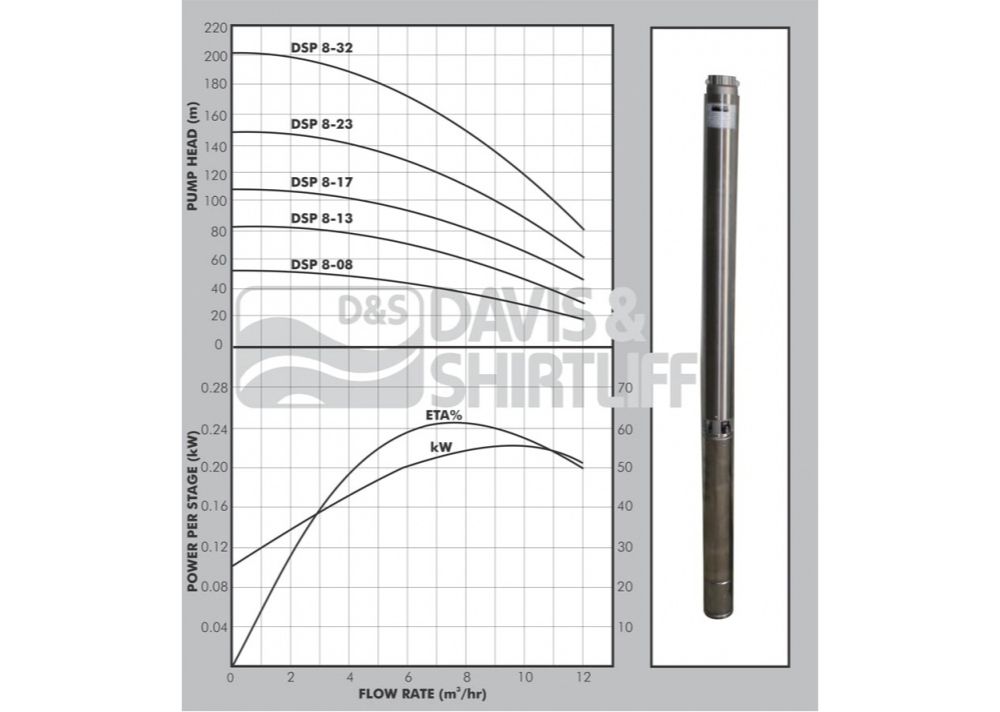

Downloads DSP 8 Datasheet
