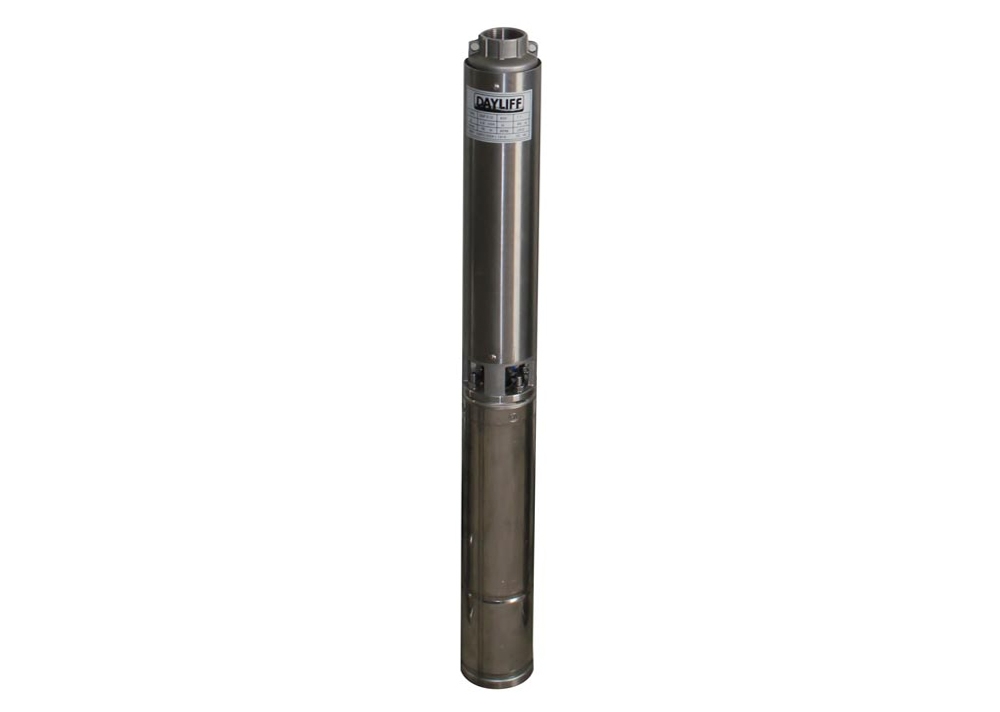

DSP 5



The DAYLIFF DSP range of submersible multistage centrifugal pumps is specifically designed for domestic and small-scale water supply from wells and boreholes. Here are some applications where these pumps can be used:

1. Residential Water Supply: The DSP pumps are well-suited for providing water supply to residential properties. They can be installed in wells or boreholes to extract water and deliver it to households, ensuring a reliable and consistent source of water for drinking, cooking, bathing, and other domestic needs.

2. Small-Scale Agriculture: These pumps can be used for small-scale agricultural applications, such as irrigating small fields or gardens. They can provide the necessary water flow to efficiently water crops, promoting healthy plant growth and maximizing yields.

3. Livestock Watering: Farmers and ranchers can utilize the DSP pumps to provide water for livestock watering. Whether it's for cattle, poultry, or other animals, these pumps can ensure a reliable water source from wells or boreholes, supporting proper hydration and animal well-being.

4. Small-Scale Commercial Applications: The DSP pumps can be employed for small-scale commercial purposes, including small businesses or community facilities that require a consistent water supply. They can provide water for cleaning, equipment maintenance, and other water-dependent operations.

5. Backup Water Supply: In areas where the main water supply is unreliable or during emergencies, the DSP pumps can serve as a backup water supply. By utilizing wells or boreholes, these pumps can provide an alternative source of water for essential needs, ensuring continuity in water availability even during disruptions.

PUMP DATA

Model Voltage (V) Motor Current (A) Istart/I DN(") Dimensions (mm) Weight (kg)
kW HP A C D
DSP 5-12  1x240 1.1 1.5 8.1 4.0 433 98 838 24
3x415 3.1 3.9 813 22
DSP 5-16 1x240 1.5 2 10.4 3.7 542 982 28
3x415 4 3.5 947 25
DSP 5-24 1x240 2.2 3 15 3.1 777 1272 35
3x415 5.6 3.9 1217 30
DSP 5-32 3x415 3 4 7.4 5.8 1003 1481 39
Downloads DSP 5 Datasheet
